Radiant RX 12 dBi 5500 MHz Standard Gain Horn

The Radiant RX 12dBi 5500 MHz Standard Gain Horn offers a typical gain of 12 dBi across a broad frequency range of 4.4 to 6.3 GHz with a typical SWR of 1.5.

Designed for both expert and hobby applications, this SMA fed antenna provides modest gain with a beamwidth of ~40 degrees, making it ideal for small reflectors, arrays, wireless communications, and testing environments alike. Mounting insert compatible with camera threads.

Designed, manufactured, and tested in the UK, the Radiant RX line of horns are created by coating a 3D printed chassis with a high performance conductive paint multiple skin depths thick, forming a suitable RF-reflective surface.

Specifications:
- Design Frequency: 5.5 GHz
- Frequency Range: 4.4 GHz to 6.3 GHz+

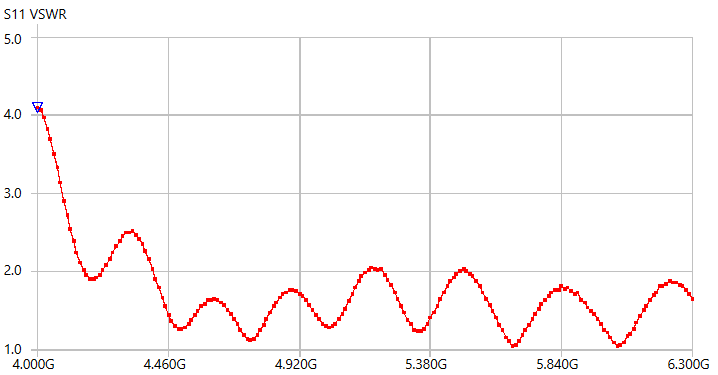

- SWR: ~1.5 Typical, 2 Maximum
- Power Limit: 50 Watts Continuous (Estimated)

Care instructions:
- This antenna is designed for mainly indoor use, it is not waterproof.
- Finger oils may damage the metal coating inside the antenna, please do not touch. A simple clip-on radome is provided should you wish to protect the metal coating.
